Planning Analytics 2.0.6
Microsoft Windows 2012 server

How make a subset of a dimension, where i want all elements that start with BSA* and some other letters, like BSB and BSC?

Suggested Solution:
In your prolog section of the TI process, use UNION, similar to this:


StringMDX = ‘ (UNION(
{UNION( { TM1FILTERBYPATTERN( {TM1FILTERBYLEVEL( {TM1SUBSETALL( [ ‘ | pDim13 | ‘ ] )}, 0)}, “BSA*” ) } ,
{ TM1FILTERBYPATTERN( {TM1FILTERBYLEVEL( {TM1SUBSETALL( [ ‘ | pDim13 | ‘ ] )}, 0)}, “BSB*” ) } )} ,
{UNION( { TM1FILTERBYPATTERN( {TM1FILTERBYLEVEL( {TM1SUBSETALL( [ ‘ | pDim13 | ‘ ] )}, 0)}, “BSC*” ) } ,
{ TM1FILTERBYPATTERN( {TM1FILTERBYLEVEL( {TM1SUBSETALL( [ ‘ | pDim13 | ‘ ] )}, 0)}, “BSD*” ) } )} )) ,
{UNION( { TM1FILTERBYPATTERN( {TM1FILTERBYLEVEL( {TM1SUBSETALL( [ ‘ | pDim13 | ‘ ] )}, 0)}, “BSE*” ) } ,
{ TM1FILTERBYPATTERN( {TM1FILTERBYLEVEL( {TM1SUBSETALL( [ ‘ | pDim13 | ‘ ] )}, 0)}, “BSF*” ) } )} ,
{UNION( { TM1FILTERBYPATTERN( {TM1FILTERBYLEVEL( {TM1SUBSETALL( [ ‘ | pDim13 | ‘ ] )}, 0)}, “BSH*” ) } ,
{ TM1FILTERBYPATTERN( {TM1FILTERBYLEVEL( {TM1SUBSETALL( [ ‘ | pDim13 | ‘ ] )}, 0)}, “BSJ*” ) } )} ))
)) ‘;

SubsetCreatebyMDX( sSubset ,StringMDX);


This can be solved in other ways, this is only a suggestion.


More Information:

Cognos Analytics 11.1.4 (Product_version=11.1 R4)
Planning Analytics 2.0.6
Microsoft Windows 2016 Server

After a IP with Cognos Controller FAP process, the Cognos Analytics BI report give a error message. When you run a report with TM1 data.

Error Message:
The report could not run because a server error occurred.
XQE-GEN-005 Found an internal error:

Wait and try again later.
Depending on the implementation done in TM1 after the FAP processes, it normally can take a long time before all dimensions are updated and the report can run again. This is different from each customer, as you may have different Tm1 code behind the scenes.

More Information:

Cognos Analytics 11.1.4
Microsoft Windows 2016 server

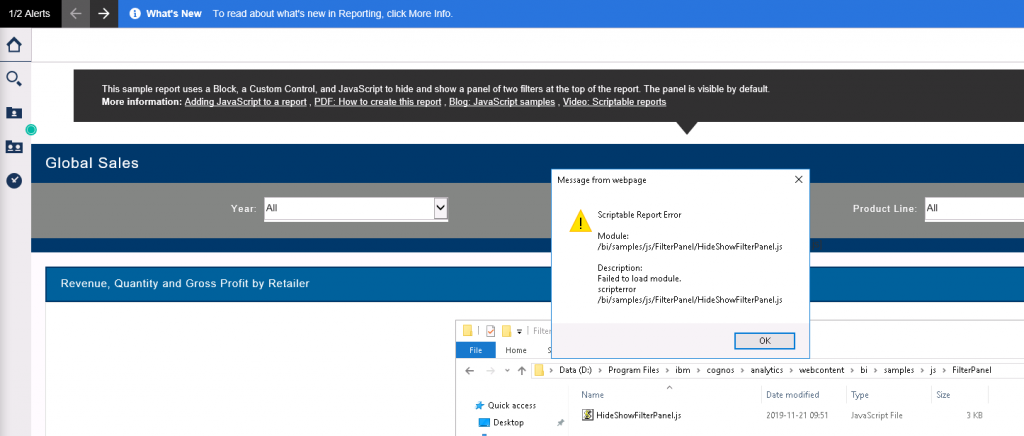

When you run the Global Sales sample report, you get a error.
This happens when you surf to http://servername/ibmcognos to reach your reports.

Error message:

Go to the Global Sales report.
Open it in edit mode.
Find the custom control.
Click on the custom control.

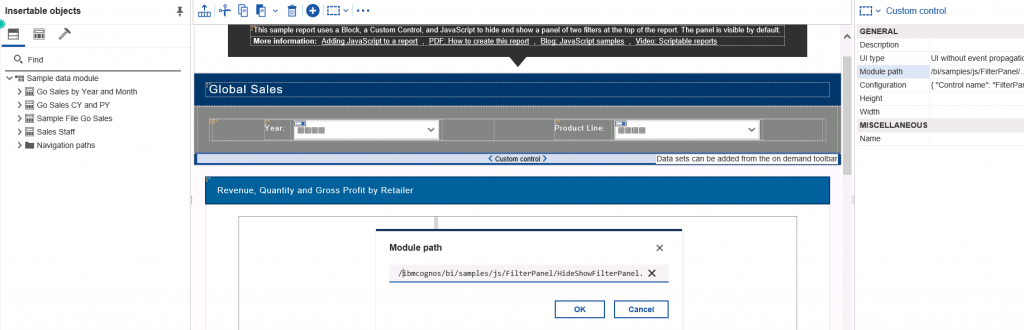

On the right side – add /ibmcognos in front of /bi at the module path properties.
Save report.
Test again.

More Information:

Cognos Analytics 11.1.3
Microsoft Windows 2016 server

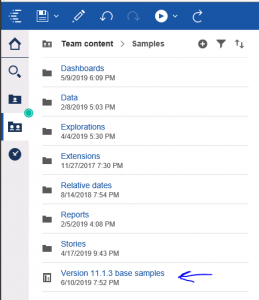

After a upgrade to Cognos Analytics later version, some links are not working. Like links for new base samples.

Error message:
The resource you are looking for has been removed, had its name changed, or is temporarily unavailable.

Most likely causes:
•The directory or file specified does not exist on the Web server.
•The URL contains a typographical error.
•A custom filter or module, such as URLScan, restricts access to the file.

Things you can try:
•Create the content on the Web server.
•Review the browser URL.
•Create a tracing rule to track failed requests for this HTTP status code and see which module is calling SetStatus. For more information about creating a tracing rule for failed requests, …

Solution workaround:

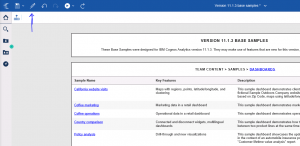

Edit the link on the page to point to the correct folder for Cognos Analytics

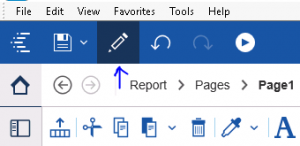

Click pencil icon to go into edit mode

Click on properties icon to get to the URL value, click on the link you want to update.

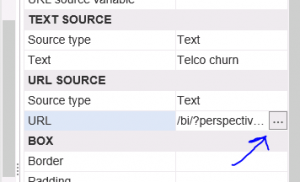

To the right of the URL line, click on the dots to edit the link

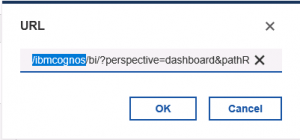

Enter /IBMCOGNOS to the beginning of the line and click OK

Turn off edit mode by click on pencil

Then test the report again.

You can also correct the folders on the IIS server, to get it to work.

More Information:

Cognos Controller 10.4.1 web
Microsoft Windows Server 2016

Change to use DNS alias to the cognos controller server, and now can not login to the Controller Web,
“Server is not reachable or still initializing, please refresh the page in a few seconds”
If you surf direct to servername, then controller web works, it is only with dns alias that give the error.

You need to change to the DNS alias in the file for Controller Web front end.
Stop the IBM Cognos Controller Web UI service
Start NOTEPAD as administrator
Open file D:\Program Files\ibm\cognos\ccr_64\frontend\config.js
Change the server name at line 25 to be the dns alias

“expressJs”: {
“host”: “”, //interface used by Controller Web UI Service
“port”: “9080”, //port used by Controller Web UI Service

Save the file.
Start the IBM Cognos Controller Web UI service

Test to surf to to see if Controller Web works.

Now to surf to server name, should not work instead.

More Information:

In cmplst.txt you will find this version for controller 10.4.1:

LICENSE_CONTROLLER_name=IBM Cognos 8 License
CONTRL_name=IBM Cognos Controller

Planning Analytics 2.0.6
Microsoft Windows 2016 server
Planning Analytics Administration Agent version

When starting the PAA Agent in windows after change from local system to a windows service account, you get a error. The service account works on the other IBM Cognos TM1 services, only the IBM Planning Analytics Administration Agent that does not start.

Error msg in Windows event log can be:
The IBM Planning Analytics Administration Agent service terminated with the following service-specific error:
Incorrect function.

Check that the Windows Service account is local administrator on the Planning Analytics server.
The PA Agent needs more local rights to read the files in folder D:\Program Files\ibm\cognos\tm1_64\paa_agent, than the other IBM Cognos TM1 service does.

You can find the message.log file here D:\Program Files\ibm\cognos\tm1_64\paa_agent\wlp\usr\servers\kate-agent\logs, that can contain more error messages.

The python code that can give some of the message is in folder; d:\Program Files\ibm\cognos\tm1_64\paa_agent\wlp\usr\servers\kate-agent\kateagent\scripts\

More information:

Instructions to configure and start PAA Agent:

1. Open Windows “Services” desktop application
2. Stop “IBM Planning Analytics Administration Agent” service, if running
3. Navigate to <PA install directory>\paa_agent\wlp\usr\servers\kate-agent
4. Open the file in a text editor
5. Set the full path of directory containing TM1 databases data directories to SERVERS_DIR. Multiple paths must be separated by semicolon.
E.g. SERVERS_DIR=C:\tm1\samples\tm1\;C:\prod\servers\
6. Save and close the file
7. Start “IBM Planning Analytics Administration Agent” Windows service
8. PAA Agent is now ready to use

Cognos Analytics 11.1.3
Planning Analytics 2.0.6
Microsoft Windows 2016 server

When run a CA11 report against a Tm1 Cube, you get this error;
XQE-MD-0007 Unable to establish a metadata connection to data source /content/package
DIM-ERR-1007 Det gick inte att efterfråga kubinformation för datakällan. Kontrollera anslutningssträngen och se till att servern är tillgänglig.

The user who runs the CA11 report must have access to data in the TM1 cube.
Go in to TM1 Architect, and right click and select Rights – clients/groups dialog.
Check the user belongs to some of the security groups.
For a quick test, mark your user as ADMIN.
Click OK.
And log out from CA11 and in again, try the same report again.

If you get the below error when you run a Cognos Analytics 11 report;
QE-DEF-0157 The model or package /content/folder does not exist or you are not allowed to use if because of security settings.

Then it can be that the FM package is deleted.

Click on search icon on the left in Cognos 11, and search for the package name. If you find it, check that the user group the user belongs to have “run” rights, on the package.
More Information:

Cognos Controller 10.4.1
Microsoft Windows 2016 server

Controller admin try to update users in Maintain – Rights – User dialog, for a installation where CAM security is used. He can not see the connected CAM users in the list.

You must be part of Cognos Connection security group Controller Administrators. Only people in this group can change things inside controller security dialog.

When you open the user dialog, you maybe got a message “The user currently logged in is not authorized to use this method”. That means you are not part of the Controller Administrator group.

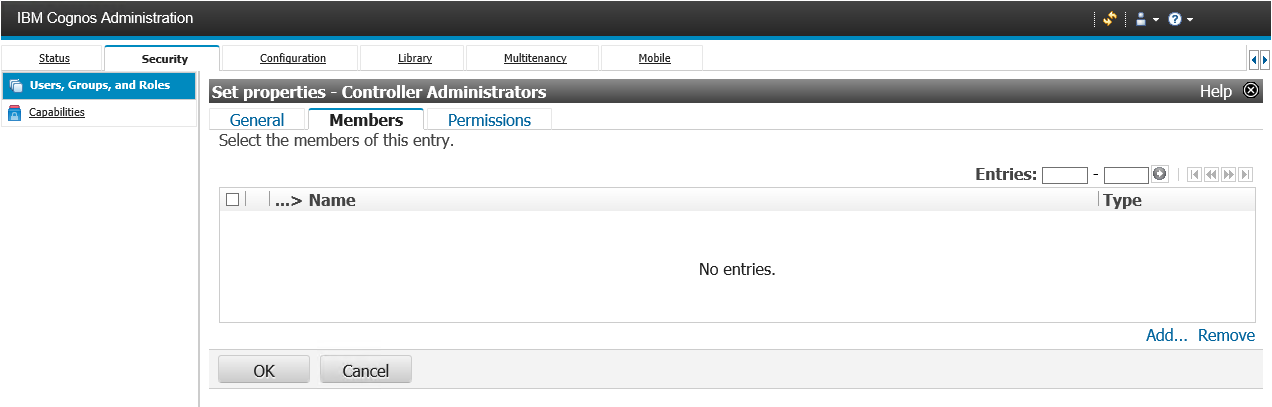

Add the person to the Controller Administrator group in Cognos. The Controller Administrator group is not the same as the ibm Cognos Controller administrator authorized user license. This is controlled by access to the Maintain menu.

More Information:

Cognos Controller 10.4.1 FAP service
Planning Analytics 2.0.6
Microsoft Windows 2016 server

You get a error when run first IP in a new setup of FAP and TM1 instance.

Error in log file D:\Program Files\ibm\cognos\ccr_64\Server\FAP\error.log
10:00:08,849 | ERROR [fap.service.schedule.Scheduler] [schedulerThread], Could not logon to TM1
javax.naming.ConfigurationException: The TM1Server fap is neither in BASIC or in CAM mode

Change to IntegratedSecurityMode=5 from IntegratedSecurityMode=2 in TM1s.cfg file for the TM1 application.

During setup you have been in mode 2 to be able to add the windows service account that is going to be used by the FAP service to login to the TM1 solution. Keep in mind when you setup the DataMart (TM1 server) you need to specify the user login to TM1 with namespaceid\user name as NamespaceID looks in Cognos Configuration (CA11) and user name as you can find it in Cognos Connection. Something like this:

Domain\Lastname Firstname

The field in Edit Data Mart is case sensitive and space sensitive.

More Information:
